Ground Settling Under Pool Decking: Causes and Fixes

Have you stepped onto your pool deck lately and noticed something feels off? Maybe one section sits lower than the others, or there’s a new crack you can’t quite explain.

Ground settling under pool decking is one of the most common issues homeowners face. And it rarely fixes itself.

In this guide, you’ll learn what causes pool deck settlement, how to spot the warning signs early, and which repairs will actually solve the problem.

What Causes Ground Settling Under Pool Decking

Several things can trigger ground settling under your pool deck, and most of them start long before you see any visible damage. Your pool deck sits on soil that needs proper compaction, good drainage, and protection from water erosion to stay stable and level.

Poor Soil Compaction During Installation

Poor soil compaction during installation sets the stage for major problems later on. Contractors need to compress the soil beneath your pool deck using the right equipment and technique. Many skip this step or rush through it.

Loose, unconsolidated soil can’t support the weight of concrete slabs. The ground settles unevenly over time, leaving you with sinking sections, cracking, and voids that grow worse each year.

Water Erosion and Drainage Problems

Water moves constantly around your pool area, and it causes serious damage to the soil underneath your deck. Rainwater, splash from swimming, and runoff from nearby areas all seep into the ground beneath your concrete slab.

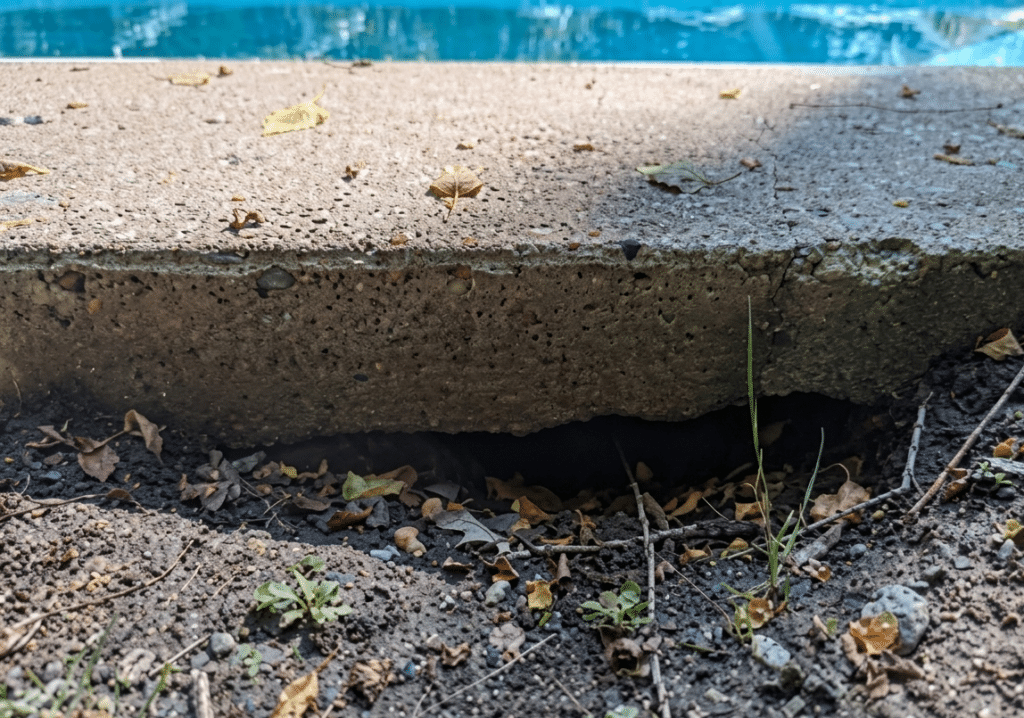

This water washes away the soil that supports your deck, creating voids underneath the concrete. The soil erosion starts slowly, but it picks up speed as more water flows through the same paths.

Expansive Soil and Freeze-Thaw Cycles

Certain soil types expand and contract with temperature changes, creating serious problems for your pool deck’s foundation. Expansive soil contains clay minerals that absorb moisture and swell up, pushing your concrete slab upward.

During freezing temperatures, the ground expands even more as water in the soil turns to ice. This expansion creates pressure that lifts and cracks your pool decking, leading to settlement issues that get worse each season.

Early Signs Your Pool Deck Is Settling

Your pool deck sends you warning signals long before major damage occurs. You might spot uneven surfaces, notice fresh cracks, or see gaps forming where your deck meets the pool structure. Catching these signs early makes a big difference in what your repair will cost.

Uneven or Sinking Concrete Sections

Sinking concrete sections pose real safety risks for anyone using your pool area. A sunken section becomes a tripping hazard, especially when wet. It also signals that ground settling is actively happening under your deck.

Cracks Forming Around the Pool Deck

Cracks showing up around your pool deck are a clear sign that ground settling is happening beneath the concrete slab. You’ll notice thin hairline cracks first, but they grow wider and longer over time. These settlement cracks typically run in patterns, spreading outward from the pool area where water pressure and soil movement are strongest.

Gaps Between Coping, Decking, and Pool Structure

The coping sits on top of the pool wall. When settling happens, it starts to separate from the deck surface, leaving gaps that collect debris and water. These openings are more than an eyesore. They signal that soil erosion and poor drainage have weakened the foundation underneath.

The Most Common Fixes for Sinking Pool Decks

When your pool deck starts sinking, you’ve got several solid repair options. Your contractor can lift the concrete back up, improve drainage around your pool, or replace the damaged sections entirely. Here’s how each one works.

Mudjacking and Polyurethane Foam Lifting

Mudjacking and polyurethane foam lifting are two of the most effective methods for deck leveling and ground stabilization under your pool decking. Both address voids beneath concrete slabs and restore structural integrity without removing the entire deck.

Mudjacking pumps a mud slurry beneath your sinking concrete to fill voids and lift the slab back to its original position. Professionals drill small holes through the concrete surface, then inject the stabilization material directly under the affected areas.

Polyurethane foam lifting works faster than traditional mudjacking, expanding as it cures to fill empty spaces and compact loose soil beneath the slab.

Both methods cost less than full concrete replacement.

Regrading Soil and Improving Drainage

Regrading soil around your pool deck stops water from pooling and causing erosion problems. Improving drainage protects your concrete slab from settling and cracking over time.

Here are the key steps professionals take:

• Slope the ground away from your pool deck at a 2 to 3 percent grade, directing water toward storm drains or away from the foundation
• Install French drains or perimeter drainage systems around the pool area to capture runoff and prevent soil erosion beneath the decking
• Compact soil properly during regrading work to ensure stable ground consolidation and prevent future settlement issues
• Clear debris from gutters, downspouts, and drainage channels so water flows away from your pool deck consistently
• Create a swale or shallow trench on the uphill side of your deck to intercept surface water before it reaches the concrete

Removing and Replacing Damaged Concrete

Sometimes fixing drainage alone won’t solve your pool deck problems, especially when concrete damage runs too deep. Full concrete removal and replacement tackles settlement issues at their source, giving you a fresh start with proper compaction and drainage.

The process involves several critical steps:

1. Assess the extent of concrete damage by walking the entire deck surface and marking all cracked sections, sunken areas, and structural integrity concerns
2. Excavate the damaged concrete slab carefully, removing all broken pieces and loose debris from the affected zone
3. Inspect the soil beneath for voids, erosion damage, and poor compaction that caused the original settlement problem
4. Compact the exposed soil thoroughly using professional equipment to create a stable foundation
5. Install proper drainage systems, including gravel base layers and drainage channels, to direct water away from the new slab
6. Pour new concrete with the correct thickness and reinforcement, ensuring proper slope for water runoff

Choosing the Right Repair Option for Your Pool Deck

The right pool deck repair depends on your specific situation, budget, and long-term goals. You’ll want to weigh quick fixes against permanent solutions that truly protect your investment.

Temporary Repairs vs Long-Term Solutions

When pool deck settlement happens, you face a critical choice between quick fixes and permanent solutions that actually last.

Repair Type	Time to Complete	How Long It Lasts	Best For
Concrete Leveling (Mudjacking)	1-2 days	3-5 years	Minor settling, quick fixes
Polyurethane Foam Injection	1-2 days	7-10 years	Medium settling, better durability
Drainage Improvement	2-5 days	10-15 years	Water erosion problems
Concrete Removal and Replacement	5-10 days	20-30 years	Severe damage, permanent solution
Full Pool Deck Renovation	10-21 days	25-35 years	Multiple issues, complete overhaul

When Full Pool Deck Renovation Makes Sense

Repair costs add up fast. At some point, a full pool deck renovation makes more sense than patching things up repeatedly.

A complete renovation makes sense when your deck shows one or more of these conditions:

• Extensive cracking or severe settlement across multiple areas
• Soil stabilization efforts that fail repeatedly despite professional attempts
• Drainage problems that persist even after targeted fixes
• Deck leveling results that don’t hold beyond one season

Conclusion

Pool deck settlement demands attention before small cracks turn into major structural problems. Ground settling under pool decking stems from poor soil compaction, water erosion, and drainage issues that worsen over time without intervention.

Professionals can diagnose voids beneath concrete and recommend fixes like mudjacking, polyurethane foam lifting, or complete deck replacement based on your specific situation.

Taking action now, whether through temporary leveling or long-term solutions, protects your family from trip hazards and prevents costly damage to your pool shell and plumbing lines.

Start with routine inspections and proper drainage control today. Keep your pool area safe and stable for years to come.
